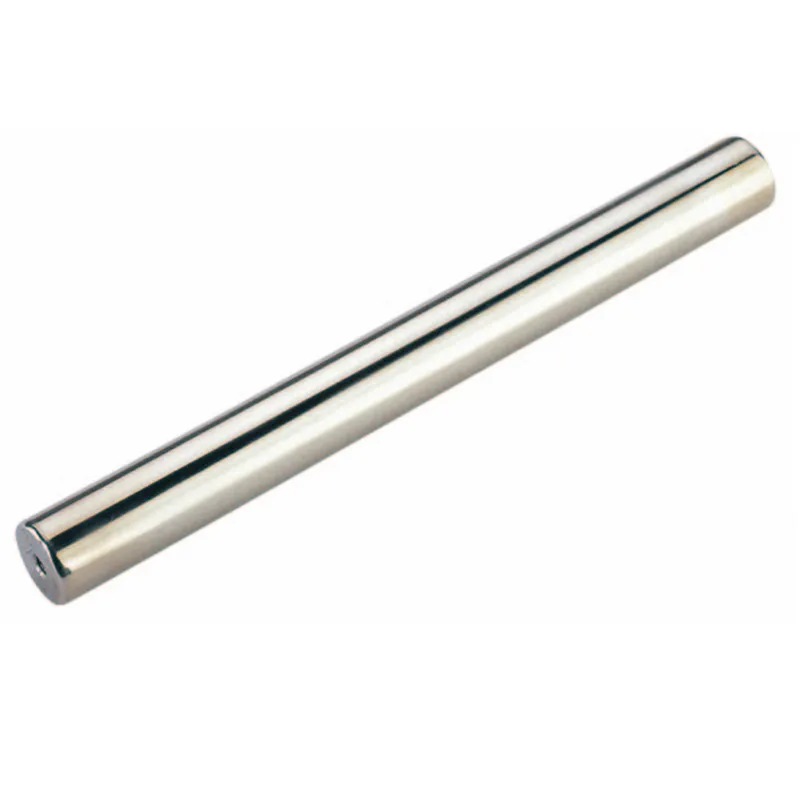

Magnetic bars serve as the main element of magnetic separators, efficiently capturing ferrous impurities and small magnetic metal particles from loose or free-flowing materials. Their versatility makes them essential for industries such as lithium battery production, food processing, chemicals, plastics, and machinery manufacturing.
Applications
Each magnetic bar is constructed using high-performance magnetic steel and premium stainless steel, carefully designed for optimal magnetic circuit efficiency. These bars are often arranged in parallel to effectively capture ferrous contaminants in specific processing stages.
- Lithium Battery Industry: Coating processes.
- Environmental Protection: Water filtration systems.
Specifications
| Magnetic strength | |||||||
| Diameter | 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.3T |
| Ø10 | √EH | √H | - | - | - | - | - |
| Ø16 | √EH | √EH | √EH | √H | √H | - | - |
| Ø19 | √EH | √EH | √EH | √H | √H | - | - |
| Ø20 | √EH | √EH | √EH | √SH | √H | √H | - |
| Ø22 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø23 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø25 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø28 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø32 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø38 | √EH | √EH | √EH | √EH | √UH | √H | √H |
| Ø50 | √EH | √EH | √EH | √UH | √H | √H | √H |
| Ø76 | √EH | √EH | √EH | √H | √H | √H | √H |
| Ø100 | √EH | √EH | √H | √H | - | - | √H |
- H series: 120℃
- SH series: 150℃
- UH series: 180℃
- EH series: 350℃
Notes: The listed values (120°C, 150°C, 180°C, 350°C) indicate the maximum operating temperature for each series.
Features

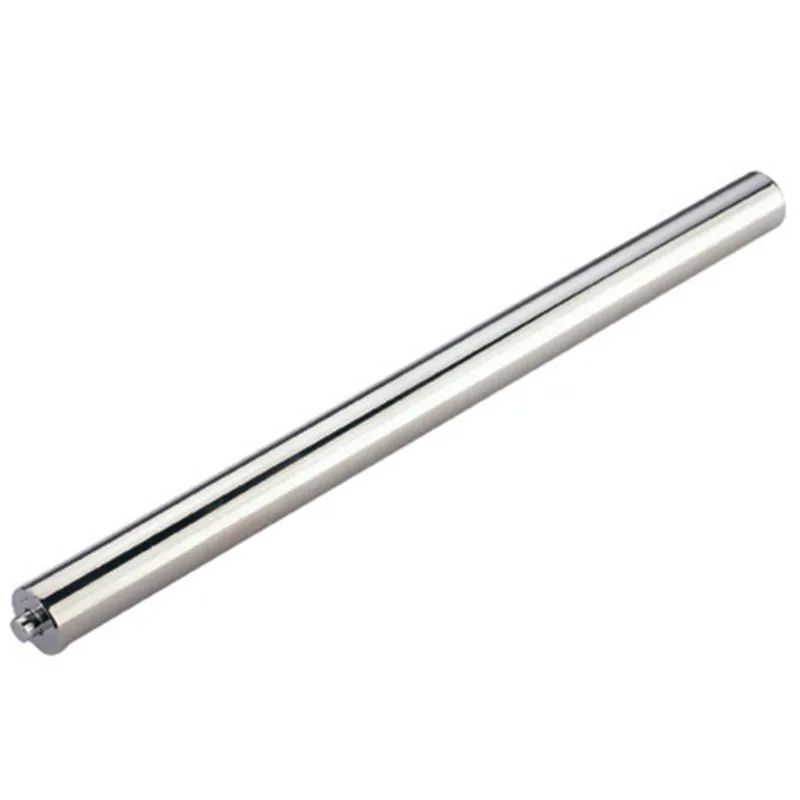

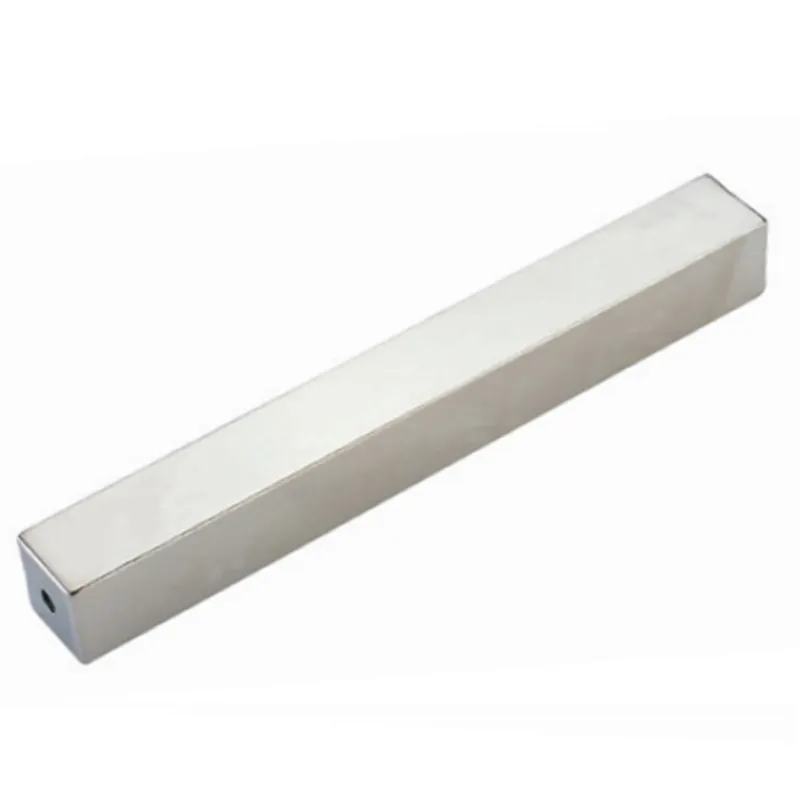

- Magnetic bars are available in various sizes, with a standard cylindrical diameter of 25mm (1 inch). Lengths can be customized up to 2500mm, and square or other custom shapes are also available to meet specific processing needs.
- Constructed with 304 or 316L seamless stainless steel, these bars offer excellent corrosion resistance and durability. A polished surface finish is available to comply with the hygiene requirements of food and pharmaceutical applications.
- Standard models operate at temperatures up to 80°C, but high-temperature versions can be designed for applications requiring working conditions of up to 350°C.

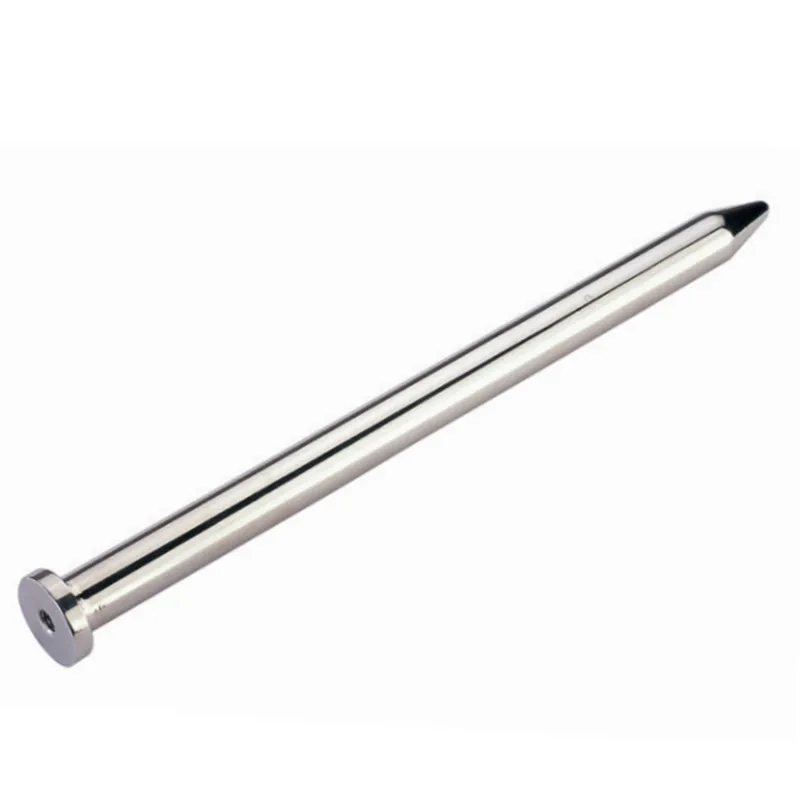

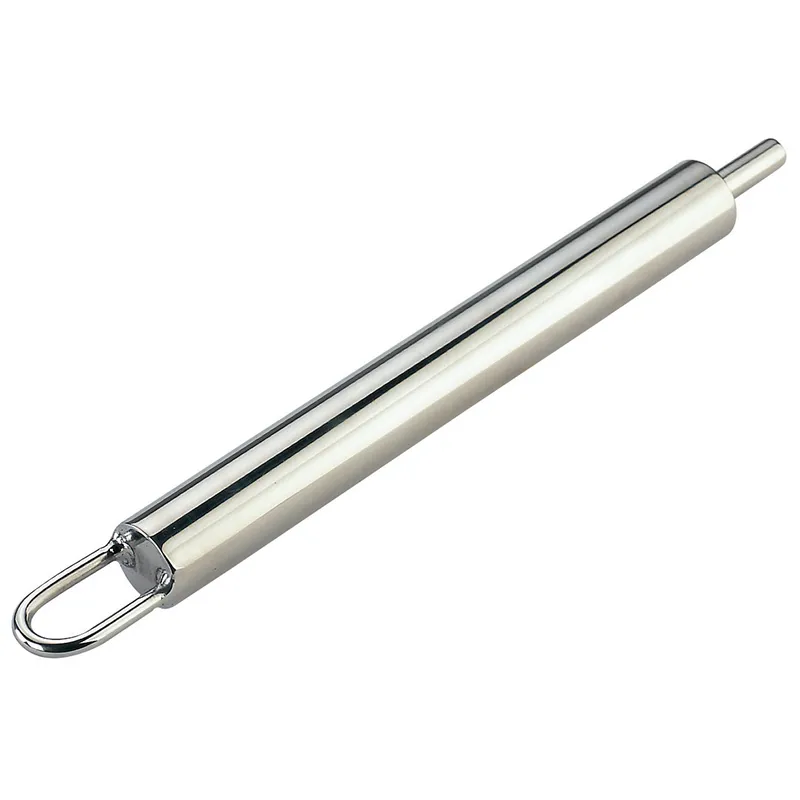

- Multiple end designs are available, including pointed ends, threaded holes, and stud ends, allowing for flexible installation and compatibility with different separation systems.
- A range of magnetic strengths is available using ferrite or rare earth magnets in various grades. D25mm magnetic bars can reach a surface magnetic strength of up to 12,000 GS, ensuring effective separation in diverse industrial applications.
